#include <bem.h>

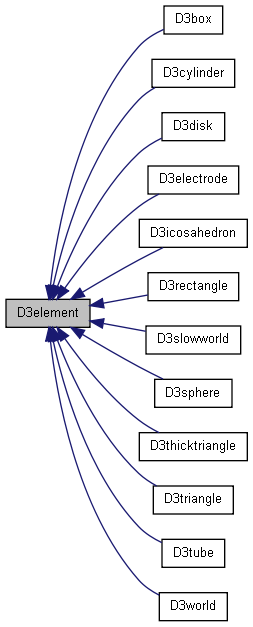

Inheritance diagram for D3element:

[legend]

Collaboration diagram for D3element:

Public Member Functions
virtual void	correctNorm (double x0, double y0, double z0)
	Uses ray-shooting to determine the norm and should only be used for externally imported geometrical figures.
virtual bool	IntersectWithRay (double x0, double y0, double z0, double xdir, double ydir, double zdir, double &mul)
virtual void	InsertTGeoVolume (TGeoVolume top, TGeoMedium mat, TGeoMedium matVak, TGeoManager geom)
virtual double	GetSelfPotential ()
virtual double	GetPotentialAt (double x, double y, double z)
virtual double	GetSelfDoubleLayerPotential ()
virtual double	GetDoubleLayerPotentialAt (double x, double y, double z)
virtual void	GetPotentialAndFieldAt (double x, double y, double z, double &pot, double &ex, double &ey, double &ez)
virtual double	GetArea ()
virtual void	GetCenter (double &x, double &y, double &z)
	D3element (double x_, double y_, double z_, double phi_, double theta_, double psi_, bool inversenorm_=false, bool refineable_=true, D3element *parent_=NULL, double epsilon=0, string name="")
	~D3element ()
virtual void	GetReferencePoint (double &x, double &y, double &z)
virtual void	init (bool ignorefirst=false)
virtual void	refine (double length)
	Refines a geometrical figure.
virtual void	refine (double length, int num)
int	GetAmountOfSubelements ()
int	PrintAmountOfSubelements ()
void	GetListOfBaseElements (PD3element *el, int &cnt)
virtual void	rotate (double phi_, double theta_, double psi_)
virtual void	shift (double xs, double ys, double zs)
virtual void	rotate2 (double phi_, double theta_, double psi_, double x, double y, double z, double &x2, double &y2, double &z2)
virtual void	rotateinv (double phi_, double theta_, double psi_, double x, double y, double z, double &x2, double &y2, double &z2)
void	Add (PD3element el)
virtual void	GetTriangle (double A, double B, double C, double COL)
virtual void	GetRectangle (double A, double B, double C, double D, double *COL)
virtual void	SetNormTowards (double x, double y, double z, bool towards)
virtual void	createNewSubelements (double length)
virtual string	getName ()
virtual void	setName (string name2)
virtual bool	GetInversenorm ()
Public Attributes
D3element *	parent
int	Color
string	name
list< D3element * >	subelement
Protected Member Functions
virtual void	deleteSubelements ()
Protected Attributes
double	epsilon
TGeoHMatrix	h
double	x
double	y
double	z
double	phi
double	theta
double	psi
bool	isBaseElement
bool	refineable
bool	inversenorm

Constructor & Destructor Documentation

D3element::D3element	(	double	x_,
		double	y_,
		double	z_,
		double	phi_,
		double	theta_,
		double	psi_,
		bool	inversenorm_ = `false`,
		bool	refineable_ = `true`,
		D3element *	parent_ = `NULL`,
		double	epsilon = `0`,
		string	name = `""`
	)

D3element::~D3element ( )

Member Function Documentation

void D3element::Add ( PD3element el )

virtual void D3element::correctNorm	(	double	x0,
		double	y0,
		double	z0
	)		`[virtual]`

Uses ray-shooting to determine the norm and should only be used for externally imported geometrical figures.

From Point (x0, y0, z0) Rays are being shot towards the object in order to determine in which direction the normal vector of each surface is pointing. Generally, all normal vectors can point either to the inside of the object or to the outside of the object. We should make sure that all normal vectors are pointing in the same direction!

A blue color on each outside-surface indicates a correct norm, which means that all normal Vectors are pointing in the same direction. The ions that fly by the electrodes see only the outside-surfaces of the electrodes. If an outside-surface has an incorrect norm, the ion will not be influenced correctly by the surface. This means that all outside-surfaces should be blue!

A red color on at least one outside-surface indicates that at least one normal vector is pointing in a different direction than the others. In this case we need to modify the parameters x0/y0/z0.

Important for the "shooting point" (x0,y0,z0): It must not be in the same plane as one of the surfaces!! Furthermore it must not be inside a geometrical figure!! Otherwise the Ray-Shooting method will not work properly.

Parameters:

x0	x-coordinate of the shooting-point
y0	y-coordinate of the shooting-point
z0	z-coordinate of the shooting-point

virtual void D3element::createNewSubelements ( double length ) [virtual]

Reimplemented in D3triangle, and D3rectangle.

virtual void D3element::deleteSubelements ( ) [protected, virtual]

int D3element::GetAmountOfSubelements ( )

virtual double D3element::GetArea ( ) [virtual]

Reimplemented in D3triangle, and D3rectangle.

virtual void D3element::GetCenter	(	double &	x,
		double &	y,
		double &	z
	)		`[virtual]`

Reimplemented in D3triangle, and D3rectangle.

virtual double D3element::GetDoubleLayerPotentialAt	(	double	x,
		double	y,
		double	z
	)		`[virtual]`

Reimplemented in D3triangle, and D3rectangle.

virtual bool D3element::GetInversenorm ( ) [virtual]

void D3element::GetListOfBaseElements	(	PD3element *	el,
		int &	cnt
	)

virtual string D3element::getName ( ) [virtual]

virtual void D3element::GetPotentialAndFieldAt	(	double	x,
		double	y,
		double	z,
		double &	pot,
		double &	ex,
		double &	ey,
		double &	ez
	)		`[virtual]`

Reimplemented in D3triangle, and D3rectangle.

virtual double D3element::GetPotentialAt	(	double	x,
		double	y,
		double	z
	)		`[virtual]`

Reimplemented in D3triangle, and D3rectangle.

virtual void D3element::GetRectangle	(	double *	A,
		double *	B,
		double *	C,
		double *	D,
		double *	COL
	)		`[virtual]`

Reimplemented in D3rectangle.

virtual void D3element::GetReferencePoint	(	double &	x,
		double &	y,
		double &	z
	)		`[virtual]`

Reimplemented in D3triangle, and D3rectangle.

virtual double D3element::GetSelfDoubleLayerPotential ( ) [virtual]

Reimplemented in D3triangle, and D3rectangle.

virtual double D3element::GetSelfPotential ( ) [virtual]

Reimplemented in D3triangle, and D3rectangle.

virtual void D3element::GetTriangle	(	double *	A,
		double *	B,
		double *	C,
		double *	COL
	)		`[virtual]`

Reimplemented in D3triangle.

virtual void D3element::init ( bool ignorefirst = false ) [virtual]

virtual void D3element::InsertTGeoVolume	(	TGeoVolume *	top,
		TGeoMedium *	mat,
		TGeoMedium *	matVak,
		TGeoManager *	geom
	)		`[virtual]`

Reimplemented in D3triangle, and D3rectangle.

virtual bool D3element::IntersectWithRay	(	double	x0,
		double	y0,
		double	z0,
		double	xdir,
		double	ydir,
		double	zdir,
		double &	mul
	)		`[virtual]`

Reimplemented in D3triangle, and D3rectangle.

int D3element::PrintAmountOfSubelements ( )

virtual void D3element::refine	(	double	length,
		int	num
	)		`[virtual]`

virtual void D3element::refine ( double length ) [virtual]

Refines a geometrical figure.

This means that the original geometrical object will be filled with smaller versions of itself. Works good with cubic objects.

Does not work good with other objects like cylinders etc..?? //x

The parameter length determines the size of the smaller objects.

Example: Cube with sides (1x1x1) and parameter length 0.1 => 10 small cubes will be fit along each side, so the cube will then contain 10*10*10=1000 small cubes.

Press ctrl+w to see the lattice model and get an impression of the refinement. Press ctrl+r to see the original model again

Parameters:

length size of the smaller objects that fill up the incident object
